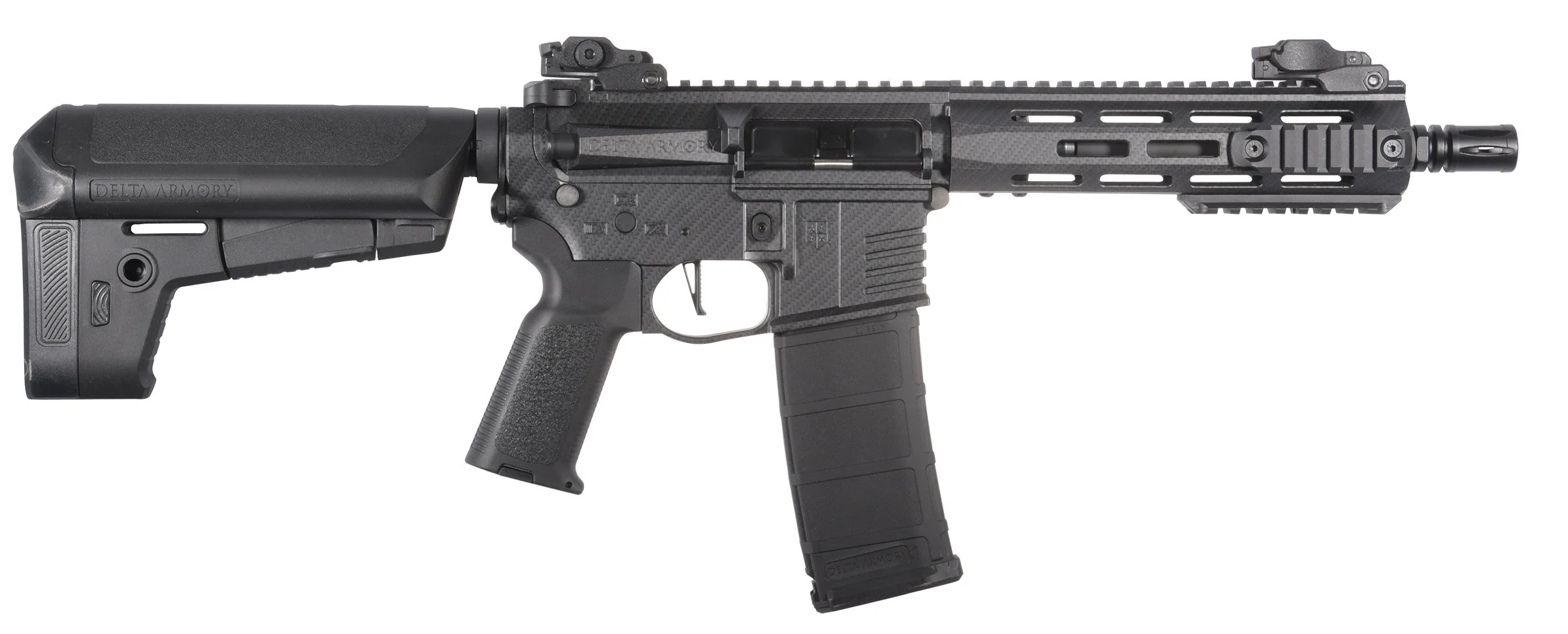

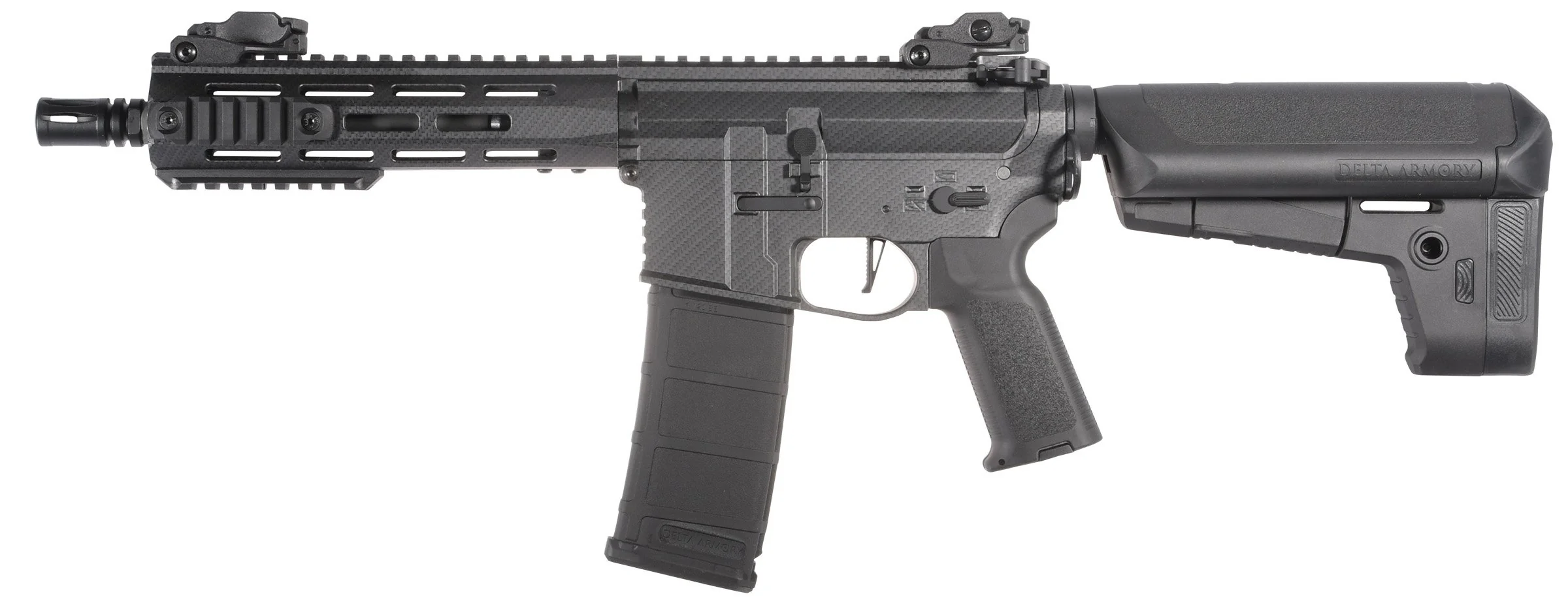

Delta Armory M4 / AR15 M-LOK 8" CHARLIE – Carbon
Delta Armory AR15 M-LOK 8" CHARLIE AEG - Carbon
The Delta Armory AR15 M-LOK 8" CHARLIE Carbon combines lightweight construction, dependable performance, and modern styling in a compact M4 AEG airsoft rifle. Finished with an eye-catching Carbon hydrographic coating, this rifle delivers a distinctive appearance while maintaining the durability of its reinforced ABS polymer receiver. It is an excellent choice for CQB games, fast-paced skirmishes, and players looking for an affordable yet upgrade-ready platform.
Internally, the rifle features a reinforced Version 2 gearbox built for long-term use with springs up to approximately M120. Proven components such as the SHS reinforced piston with 14 full steel teeth, reinforced steel gears with a delayer chip, and durable 7 mm metal sleeve bearings ensure smooth and reliable operation.
For enhanced shooting performance, the rifle is equipped with a 6.03 mm precision inner barrel and a rotary hop-up chamber, providing excellent shot consistency while maintaining stable adjustment throughout extended firing sessions.
The integrated QRS Gen2 Quick Spring Change System allows you to replace the main spring in just a few minutes without opening the gearbox, making it easy to adapt the rifle to different FPS limits required by indoor and outdoor fields.
Key Features
- Exclusive Carbon hydrographic finish
- Reinforced Version 2 gearbox with QRS Gen2 quick spring change
- SHS reinforced piston with 14 steel teeth
- Reinforced steel gears with delayer chip
- 7 mm metal sleeve bearings
- Precision 6.03 mm inner barrel
- Rotary adjustable hop-up chamber
- Lightweight ABS polymer receiver

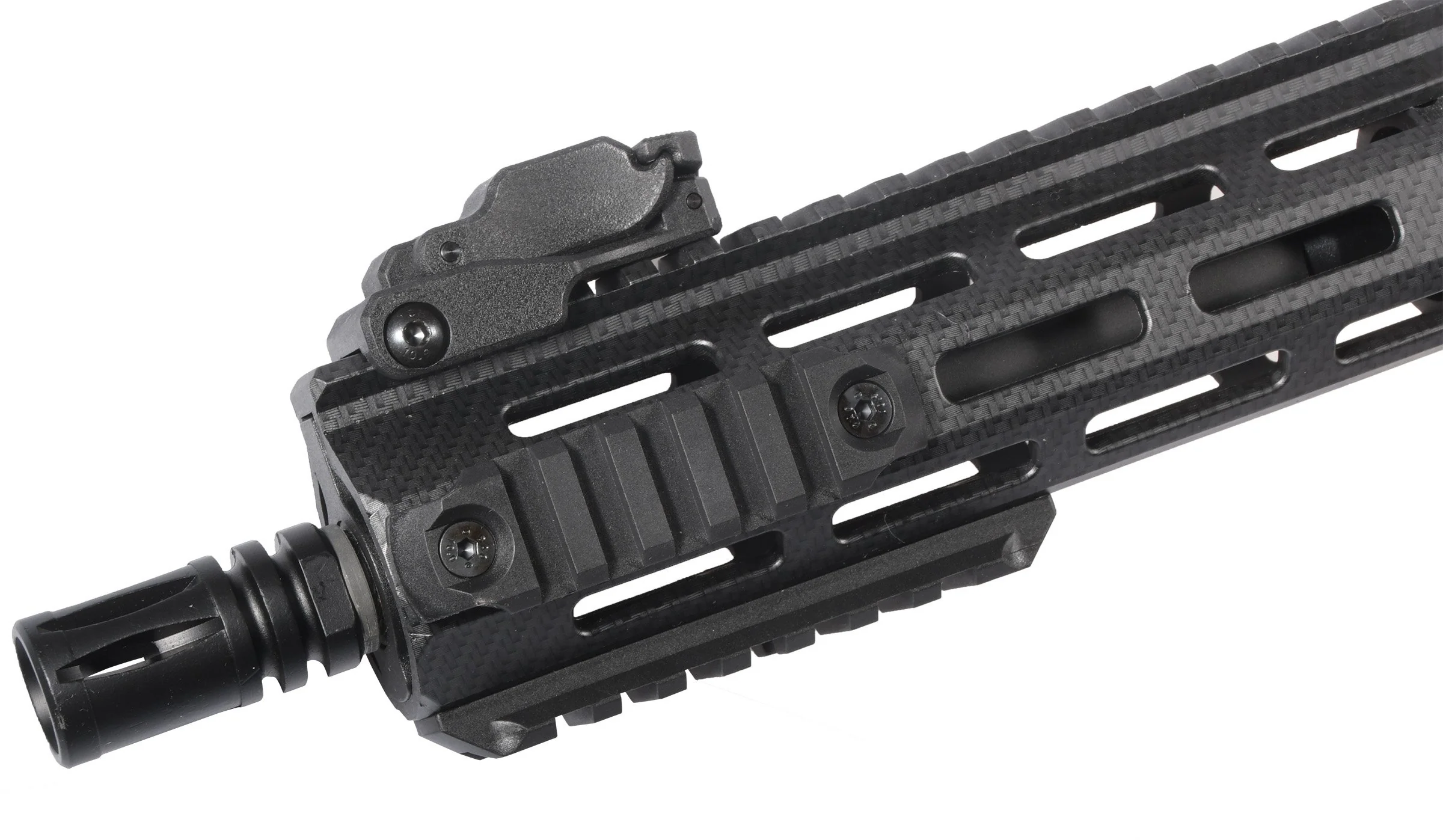

- 8" M-LOK polymer handguard with full-length Picatinny top rail

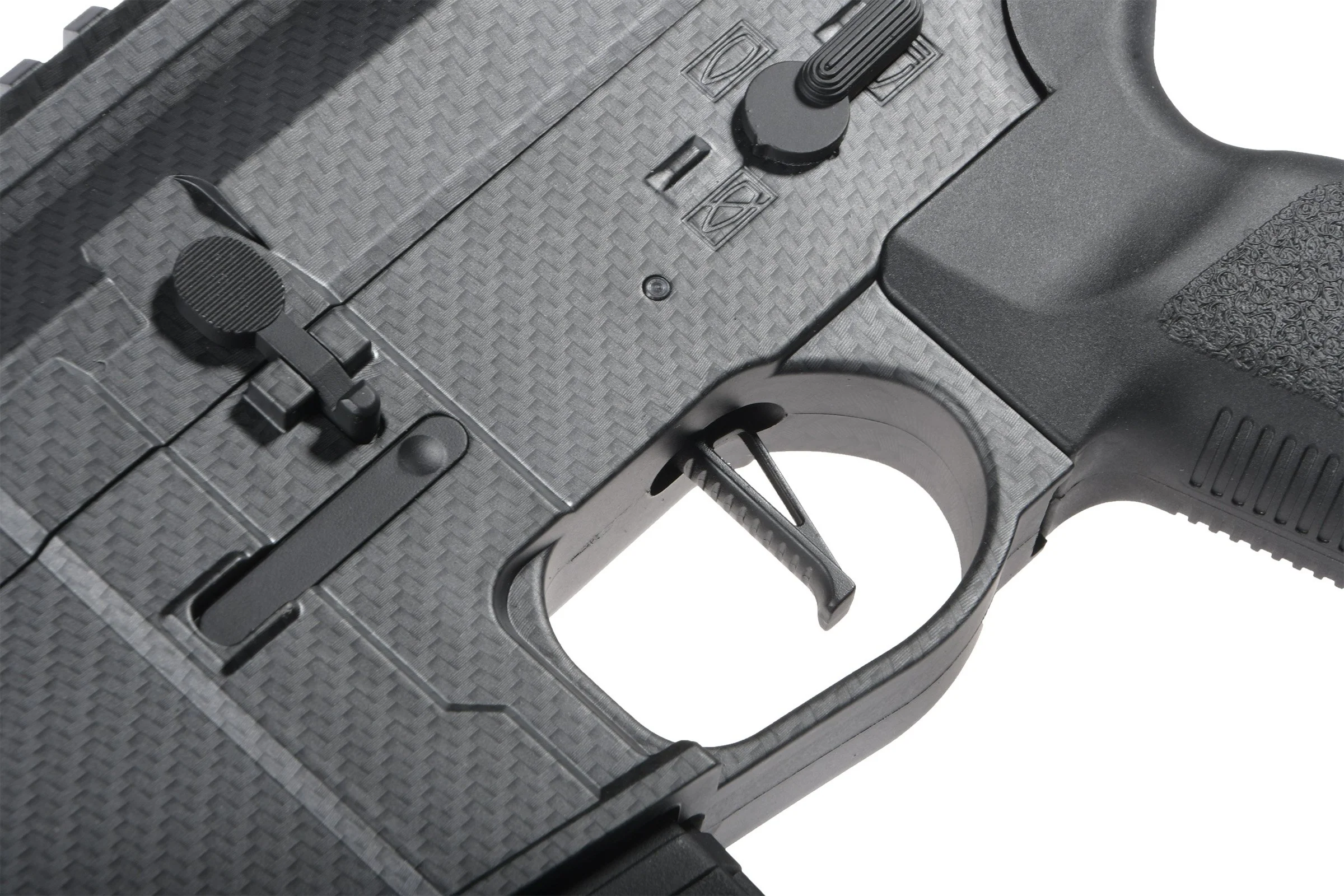

- CNC aluminium trigger
- Adjustable Crane-style stock with spacious battery compartment
- 14 mm CCW barrel thread for suppressors and tracer units
- 120-round DMAG Mid-Cap magazine included
Compact and Versatile
The compact 8-inch configuration provides outstanding manoeuvrability for close-quarter engagements while maintaining excellent effectiveness outdoors. Producing approximately 115 m/s (377 FPS with 0.20g BBs), the rifle performs best with 0.25g–0.28g BBs for maximum accuracy and consistency.
The CHARLIE series uses traditional mechanical trigger contacts. For regular use with 11.1V LiPo batteries, installing an ETU or MOSFET such as the Perun Hybrid V2, JeffTron Leviathan V2, or JeffTron Scylla V2 is strongly recommended to improve trigger response and protect the electrical system.
Package Contents
- Delta Armory AR15 M-LOK 8" CHARLIE Carbon AEG Rifle
- DMAG Mid-Cap Magazine (120 BBs)
- 3x M-LOK RIS Rail Sections
Recommended Accessories
Complete your rifle with premium accessories from Airsoftmania:
- Airsoft Guns
- Airsoft BBs
- Batteries & Chargers
- Red Dot Sights & Scopes
- Delta Armory
Technical Specifications
| Model | Delta Armory AR15 M-LOK 8" CHARLIE |
| Color | Carbon Hydrographic Finish |
| Weapon Type | AEG Electric Airsoft Rifle |
| Gearbox | Version 2 QRS Gen2 |
| Quick Spring Change | Yes |
| Inner Barrel | 230 mm × 6.03 mm |
| Muzzle Velocity | Approx. 115 m/s (377 FPS) |
| Recommended BB Weight | 0.25g–0.28g |
| Hop-Up | Rotary Adjustable |
| Bearings | 7 mm Metal Sleeve Bearings |
| Piston | SHS Reinforced (14 Steel Teeth) |
| Receiver | ABS Polymer with Carbon Hydrographic Finish |
| Handguard | 8" M-LOK Polymer |
| Thread | 14 mm CCW |
| Magazine Capacity | 120 BB Mid-Cap |
| Battery | 7.4V LiPo / Li-Ion (not included) |
| Connector | Mini Tamiya |
| MOSFET | No |
| Weight | 1980 g |
| Length | 615–690 mm |
