GATE TITAN II Bluetooth V2 Expert Controller Kit (HPA Front Wired)

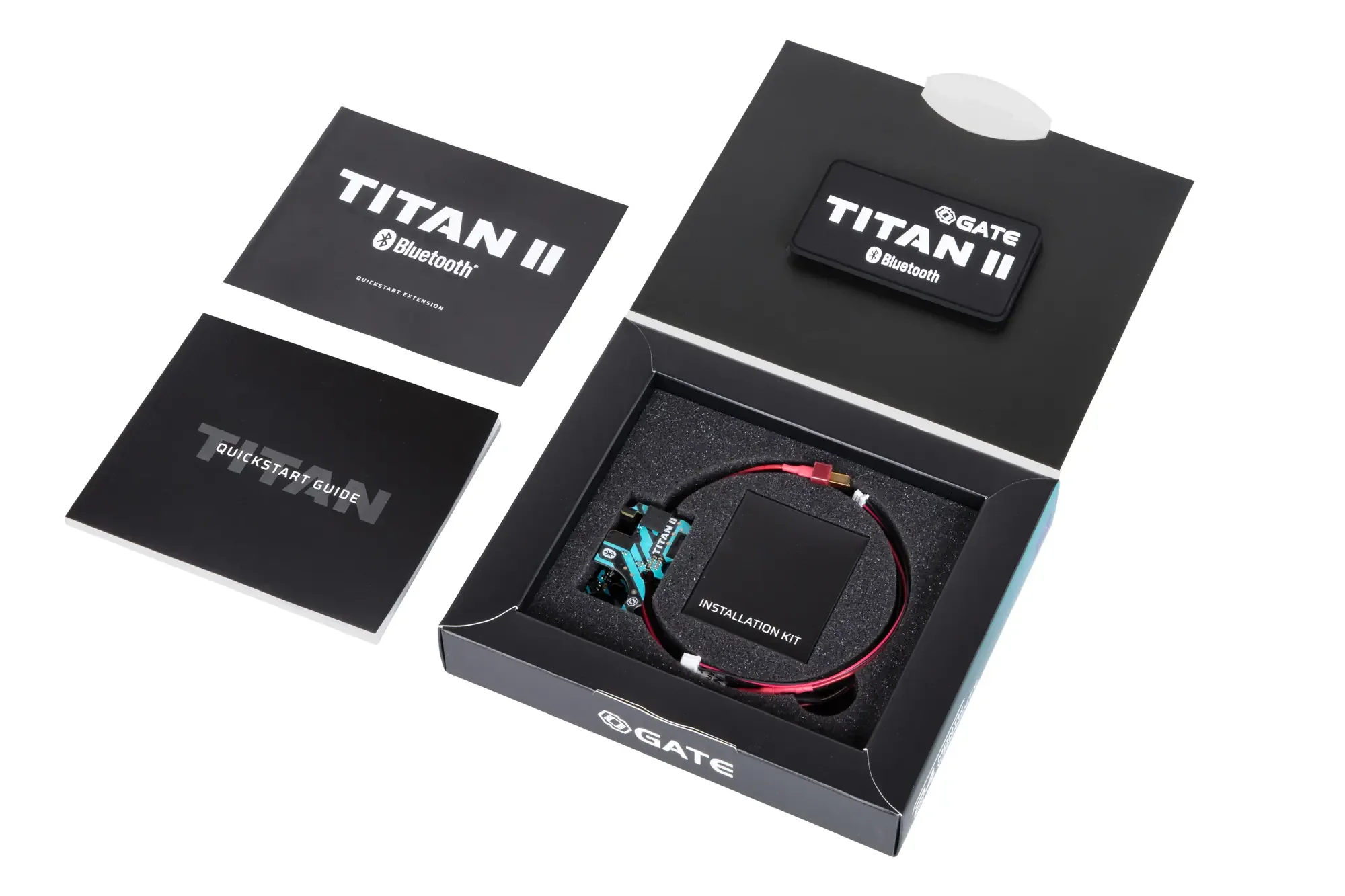

The GATE TITAN II Bluetooth® V2 Expert (HPA Front Wired) Controller Kit
TITAN II Bluetooth® V2 is GATE's flagship electronic chip replacement for the Electronic Contact Unit (ETU) by GATE. Built-in Bluetooth 5.2 technology gives direct access to the replica's settings, telemetry and the ability to use the with smartwatches, STATUS and other GATE devices.
Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.
Technical specifications_
Voltage rating: 3.75-17 VDC
Rated current_ 30 A
Maximum no-load current consumption_ 27 mA
Unloaded current consumption_ 100 µA
Communications: Bluetooth® 5.2 Low Energy
Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
Weight of finished product_ 28.2g
Operating temperature range_ min. -15° C, max. +50° C
Relative operating humidity_ ? 80%
Firmware version EXPERT.
Version with revised wiring, prepared for single and double valve HPA motors.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
GATE TITAN II Bluetooth V2 Expert Controller Kit (HPA Front Wired)
GATE TITAN II Bluetooth V2 Expert Controller Kit (HPA Front Wired)
The GATE TITAN II Bluetooth® V2 Expert (HPA Front Wired) Controller Kit
TITAN II Bluetooth® V2 is GATE's flagship electronic chip replacement for the Electronic Contact Unit (ETU) by GATE. Built-in Bluetooth 5.2 technology gives direct access to the replica's settings, telemetry and the ability to use the with smartwatches, STATUS and other GATE devices.
Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.
Technical specifications_
Voltage rating: 3.75-17 VDC
Rated current_ 30 A
Maximum no-load current consumption_ 27 mA
Unloaded current consumption_ 100 µA
Communications: Bluetooth® 5.2 Low Energy
Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
Weight of finished product_ 28.2g
Operating temperature range_ min. -15° C, max. +50° C
Relative operating humidity_ ? 80%
Firmware version EXPERT.
Version with revised wiring, prepared for single and double valve HPA motors.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The GATE TITAN II Bluetooth® V2 Expert (HPA Front Wired) Controller Kit
TITAN II Bluetooth® V2 is GATE's flagship electronic chip replacement for the Electronic Contact Unit (ETU) by GATE. Built-in Bluetooth 5.2 technology gives direct access to the replica's settings, telemetry and the ability to use the with smartwatches, STATUS and other GATE devices.
Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.
Technical specifications_
Voltage rating: 3.75-17 VDC
Rated current_ 30 A
Maximum no-load current consumption_ 27 mA
Unloaded current consumption_ 100 µA
Communications: Bluetooth® 5.2 Low Energy
Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
Weight of finished product_ 28.2g
Operating temperature range_ min. -15° C, max. +50° C
Relative operating humidity_ ? 80%
Firmware version EXPERT.
Version with revised wiring, prepared for single and double valve HPA motors.
