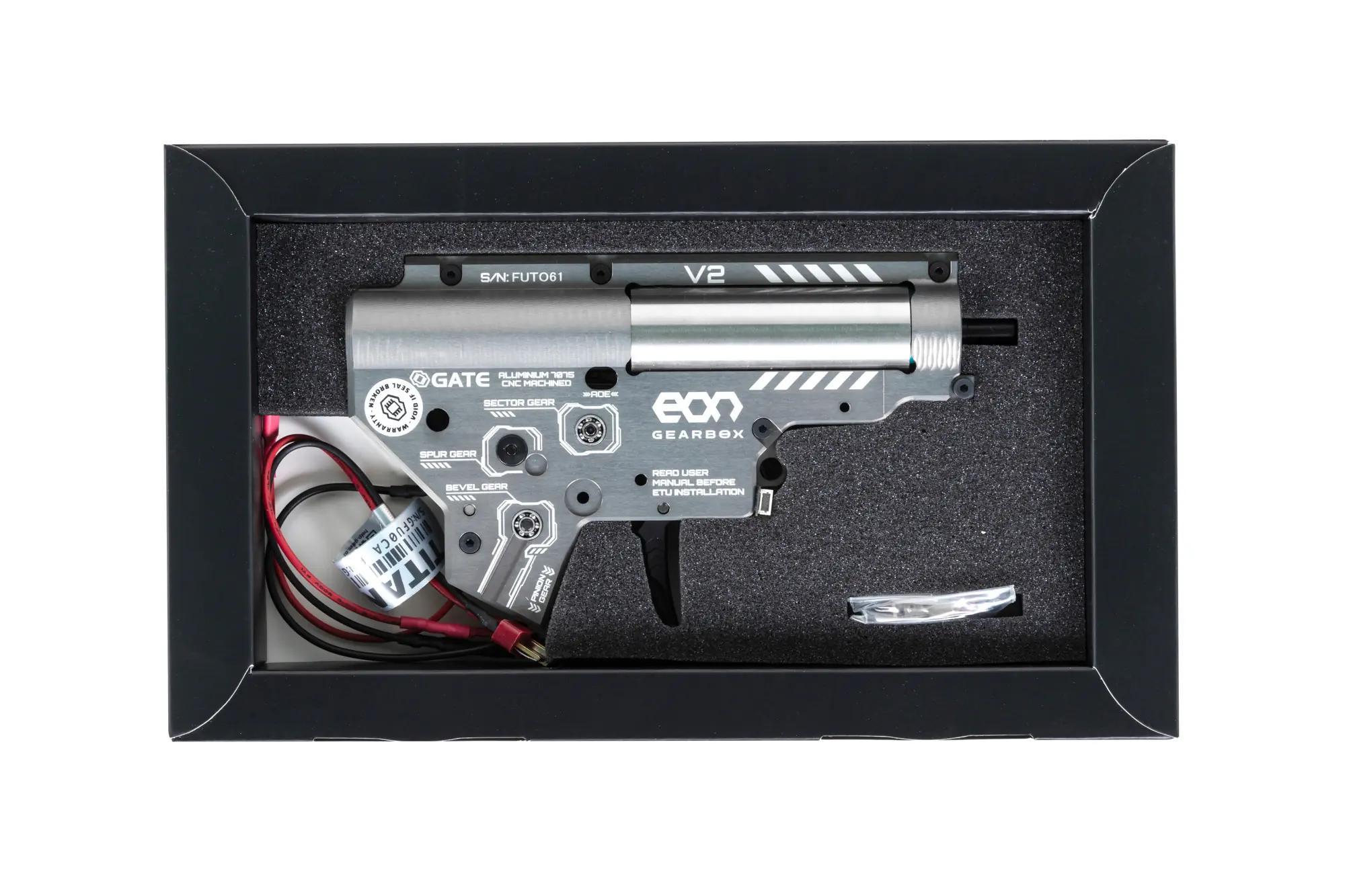

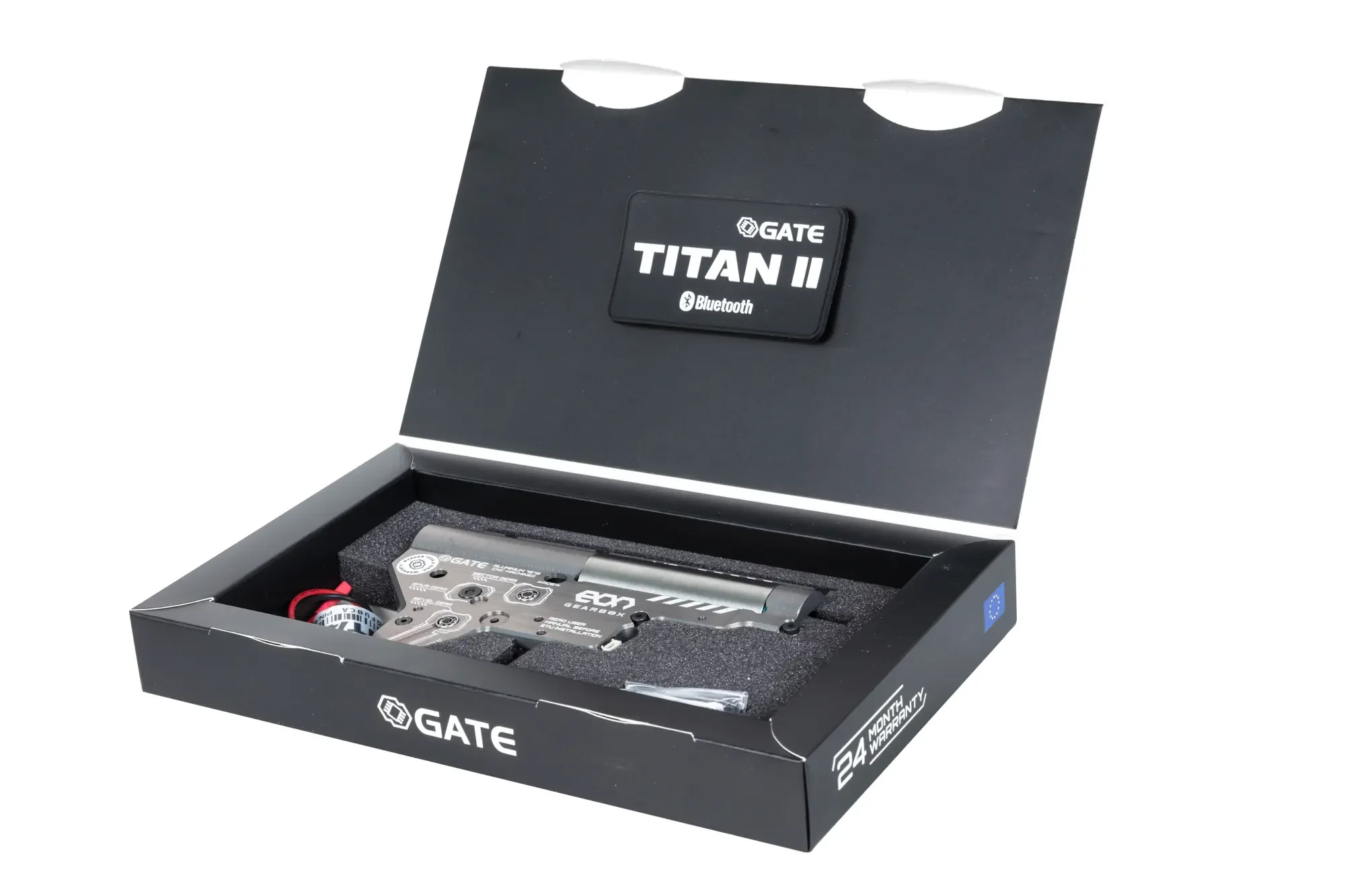

Gearbox GATE EON V2 with TITAN II Bluetooth Short Stroke (Front Wired)
Complete Gearbox GATE EON V2 with Built-in TITAN II Bluetooth® Short Stroke 330 FPS / 1J (Front Wired)
The Complete GATE EON V2 Gearbox with TITAN II Bluetooth® is a premium high-performance gearbox solution designed for players who demand exceptional trigger response, reliability and advanced electronic control straight out of the box. Fully assembled and precision-engineered using CNC-machined Aluminum 7075, this front-wired gearbox is optimized for ultra-fast response and smooth operation in competitive CQB and speedsoft environments.
Configured as a 13:1 SSG (Short Stroke) setup delivering approximately 330 FPS / 1 Joule, this complete gearbox combines top-tier internal components with the powerful GATE TITAN II Bluetooth® ETU, providing unmatched customization and real-time telemetry via the GATE Control Station™ (GCS).
Built for Maximum Trigger Response
The Short Stroke high-speed configuration is engineered for instant trigger reaction and high reliability under demanding gameplay conditions.
- 13:1 SSG gear ratio for rapid cycling
- Optimized 330 FPS / 1J setup ideal for CQB and speedsoft
- Front wired configuration
- Plug & Play installation directly out of the box
Integrated TITAN II Bluetooth® ETU
The installed GATE TITAN II Bluetooth® V2 provides industry-leading electronic control, advanced diagnostics and complete wireless configuration.
- Bluetooth® connectivity for real-time tuning
- Live replica settings editing through GCS EXPERT
- Advanced trigger adjustment
- Pre-cocking and active brake functions
- Telemetry and diagnostics support
Premium Internal Components
The EON gearbox is assembled using reinforced CNC components engineered for durability and smooth high-speed operation.
Included Internal Parts
- GATE EON V2 CNC gearbox shell
- Nova Trigger
- 13:1 high-speed SSG gearset
- CNC reinforced piston with full steel teeth
- EON Protector cylinder head
- EON High Speed piston head
- Sealed CNC POM nozzle – 21.25 mm
- Polished stainless steel cylinder
- EON tappet plate
- Reinforced anti-reversal latch
- Reinforced 8mm low-friction bearings
The setup is perfectly matched with the GATE EON hop-up chamber and other hop-up units designed for 21.25 mm nozzles.
Ready for Competitive Airsoft
This complete gearbox is an ideal upgrade for advanced M4 and AR-platform airsoft rifles requiring extreme responsiveness, electronic precision and professional-grade reliability.
Discover more high-end upgrades in our MOSFET & ETU collection or complete your build with products from our internal parts collection.
Technical Specifications
| Brand | GATE |
| Product Type | Complete Gearbox |
| Model | GATE EON V2 + TITAN II Bluetooth® |
| Gearbox Version | Version 2 |
| Configuration | 13:1 SSG Short Stroke |
| Power Output | 330 FPS / 1 Joule |
| ETU | TITAN II Bluetooth® V2 |
| Wiring | Front Wired |
| Gearbox Material | CNC Aluminum 7075 |
| Bearing Size | 8 mm reinforced bearings |
| Nozzle Length | 21.25 mm |
| Dimensions | 17.5 × 10 × 2.5 cm |
| Weight | 360 g |
| Colour | Black |
