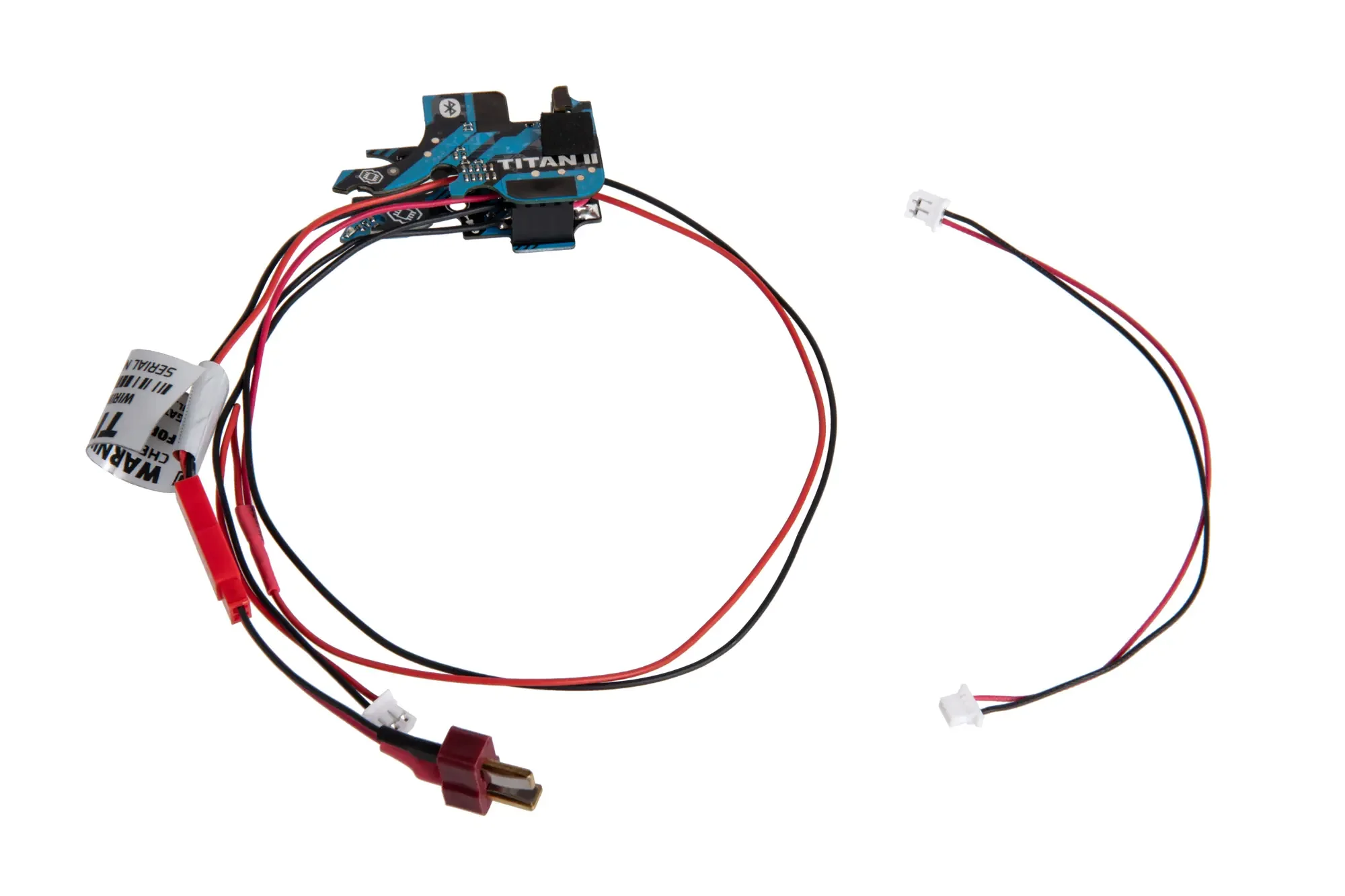

TITAN II Bluetooth V2 (HPA Rear) Control Unit Set
The TITAN II Bluetooth® V2 is a flagship electronic control unit (ECU) that replaces the trigger contacts (ETU) in airsoft AEGs by GATE. The built-in Bluetooth 5.2 technology provides direct access to airsoft gun settings, telemetry data, and compatibility with GATE's smartwatch, STATUSa, and other devices.
The optical trigger sensor allows for "hair-trigger" adjustments with precision, even down to 50 sensitivity levels in the first millimeter of trigger movement, while retaining the advantages of the trigger sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, BB illumination in the hop-up chamber, and more.
Technical Specifications:
- Nominal Voltage: ~3.75-17 VDC
- Nominal Current: 30 A
- Maximum No-Load Current: 27 mA
- No-Load Current: 100 µA
- Connectivity: Bluetooth® 5.2 Low Energy
- Dimensions (L x W x Thickness): 47.2 mm x 28.9 mm x 14.5 mm
- Ready Product Weight: 28.2g
- Operating Temperature Range: min. -15°C, max. +50°C
- Relative Operating Humidity: ≤ 80%
- Wiring Version: Prepared for single and double solenoid HPA engines.
